Ditch Light Mirror Mounts - 100 Series Toyota Land Cruiser Lexus LX470

Front Mirror Mounts fit 1998-20007 Toyota UZJ100 Land Cruiser and 1998-2007Lexus LX470

FITS 1998-2007 Toyota Land Cruiser UZJ100 Lexus LX470

• CAD drawn
• CNC laser cut out of 11 gauge steel
• Precision formed to fit in between the mirror and the door using existing mounting bolts
• Powder Coated: BLACK SEMI GLOSS

With the installation of these Toyota UZJ100 Land Cruiser Lexus LX470 Front Mirror brackets, you can install the following:

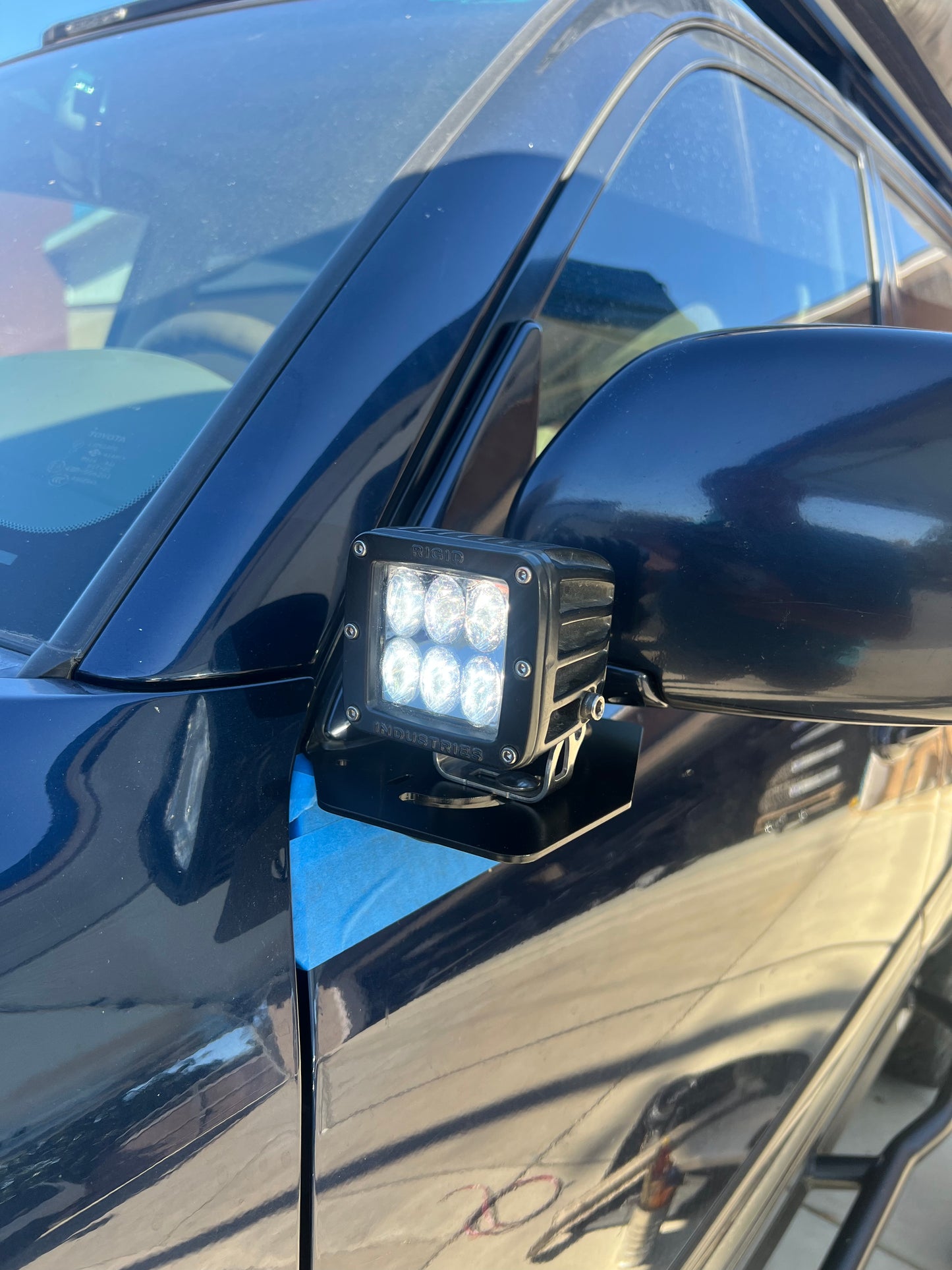

1) Ditch lights facing to the sides or front facing

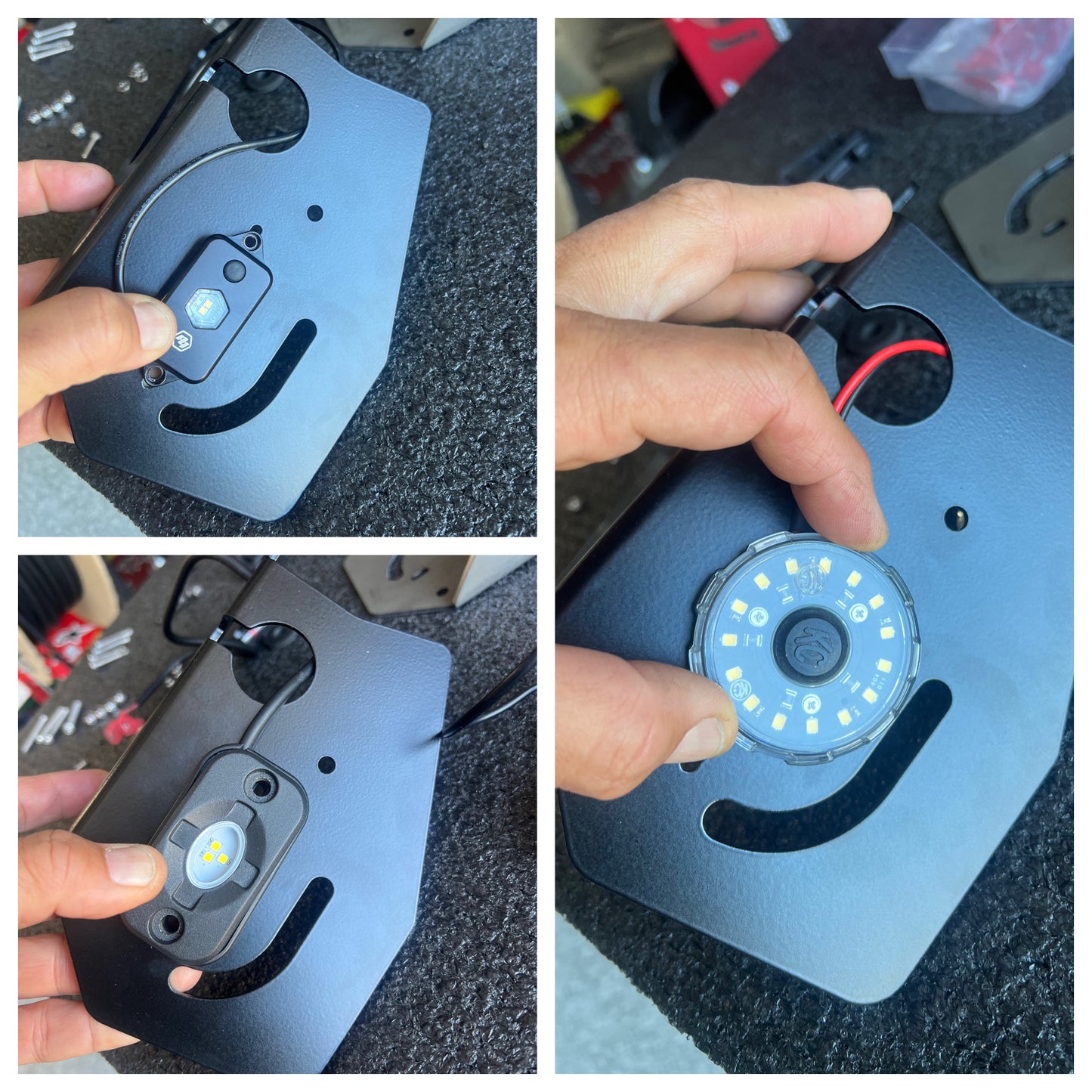

2) Install courtesy lights / camp light
3) CB Antenna
4) 2M/Ham Antenna

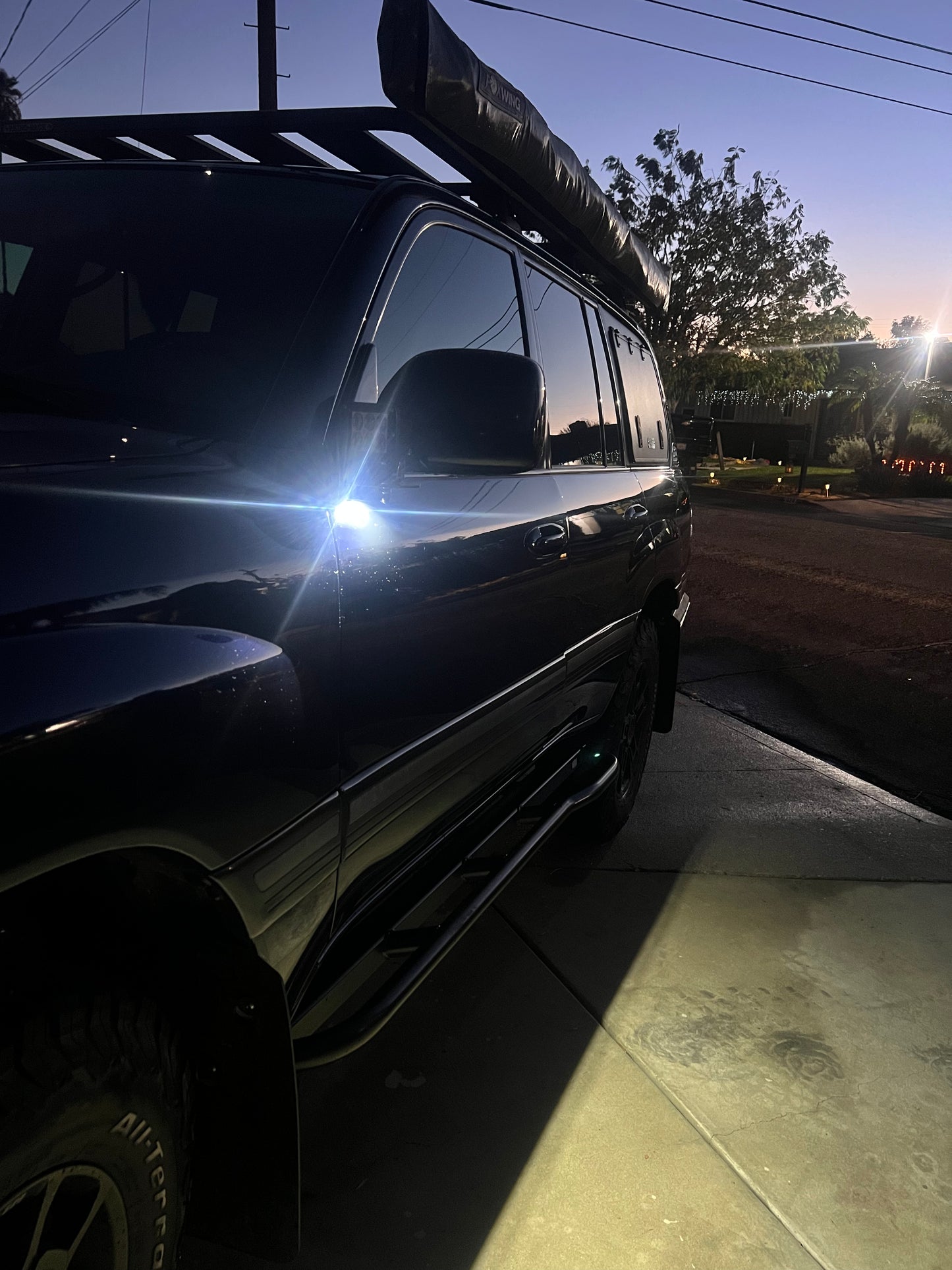

5) Security System Entry Light / Rock Lights / Courtesy Puddle Lights
6) Sand Dune Whip/ATV Flag

*designed based on a US spec 100 series land cruiser

VIDEO  - yodaTEQ Ditch Light Mounts | Black Hills Builds |  LINK

Easily Remove the DOOR PANEL on 100 Series Toyota Land Cruiser LINK By LandCruiserDIY

See install instructions below

Tools required:

#1Plastic pry tool

#2 phillips head screwdriver

#3 10mm Socket / Wrench

The yodaTEQ mount sandwiches between the side mirror and the door

Step 1: Carefully remove the door panel to gain access to the 3 bolts holding the side view mirror in place

Easily Remove the DOOR PANEL on 100 Series Toyota Land Cruiser LINK
- By LandCruiserDIY

Step 2: Loosen the 3 bolts holding the side view mirror in place but be sure to support the mirror with one hand or with the help of a friend to prevent it from falling

Step 3: Insert the yodaTEQ Ditch Light onto the mirror lining up the triangle cut out

Step 4: Reinstall the side view mirror, sandwiching the bracket into place. Tighten the 3 mirror bolts slowly in a circular pattern to make sure it is evenly mounted

Step 5: Replace the door panel and all associated wire connectors, and you’re done!

The routing of the wire harness is dependent on you or the installer. There’re multiple ways of running the wires. I’ve found the easiest way is to loosen the fender bolts along the top of the fender and one in the door jam; to allow you to slightly pull it away and give you access to run the wire into the engine bay. Alternatively, you can run the ditch light and puddle light wiring into the vehicle though the mirror’s housing. Running the wires alongside the mirror’s wiring. For this type of install you would have to cut a notch to run the additional wires.
